Static Weighbridge

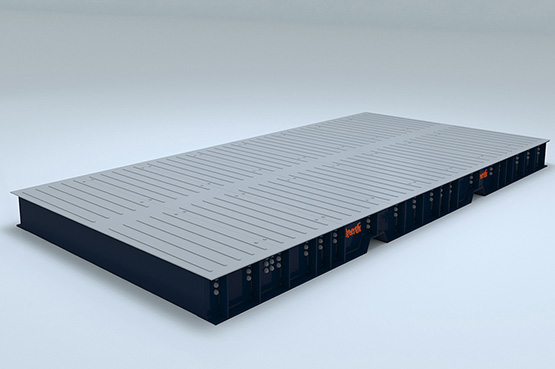

The Digital Weighbridge shall comprise of a mechanical platform structure resting freely on Four/Six/Eight/Ten Load Cells. The Weighbridge would be Pit Type or Pitless type i.e. at/above the ground level & Can be Extendable up to 24 mt. to the Desired Proportional Capacity 200 mt.
Types:
- Pit Type Weighbridge
- Pitless Type Weighbridge
- Dual Track Weighbridge
- Modular Weighbridge
Pit Type Weighbridge
Pit Type Weighbridge/ Truck Scale is most suitable for places with limited space e.g. non-hilly areas where the construction of pit is not a costly affair. Since the platform is in level with the ground, vehicles can approach the weighbridge from any direction. Most public weighbridges prefer this design.
Pitless Type Weighbridge
Pitless Type Weighbridge/ Truck scale is most suitable where the excavation work for foundation is difficult or construction of pit is expensive. Since the structure is above ground level, vehicles can approach the weighbridge only from two directions where the ramps are provided. This type of weighbridge requires more space.
Specifications:
| Specifications for Weighbridge | Universal Type i.e. same weighbridge can be accommodated Pit/Pit less |
| Type of Weighbridge | Static fully Electronic Modular-Bolted Retrofit expandable multi deck Universal Design. |
| Approval | Only Indian company to have department of W&M Govt. of India Model approval up to 200 MT |
| Type of Platform | Modular Cubical sections to enable future expansion and relocation |
| Structural Standard | In accordance to IS 2062/2082 Tested: STAAD III PRO |
| Side Forces Elimination | Special Lateral and Longitudinal Tie-rod Assembly arrangement |
| Safety | 100% overload capacity ultimate overload 200% |
| Finishing | Epoxy paint with undercoated primer oxide |

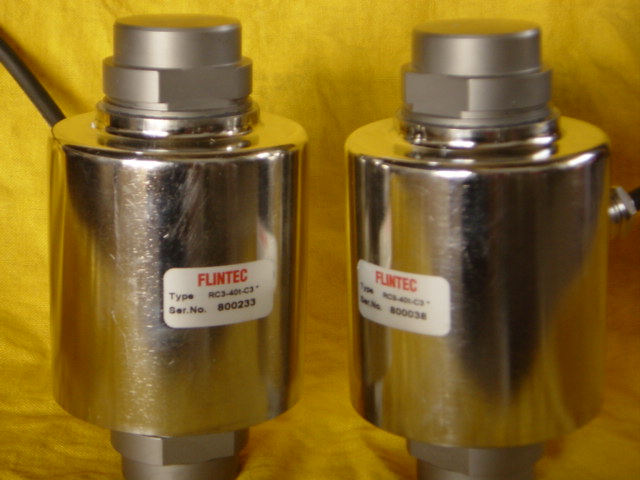

| Loadcell | FLINTEC AG LOADCELLS RC3 |
| Loadcell Rated Output | 2MV/V |
| Loadcell type and material standard protection | Stainless Steel 17-4 PH (1.458) in accordance to DIN 40.050 IP 68 |
| Safe Load Limit | 200% |
| Ultimate Overload | 300% |
| Operating Temperature Range | -40 to +80°C |
| Junction Box Protection Class | IP 65 |
| Junction Box Glands for cable entry | Double Compression type |
| Indicator | Stainless steel table top housing with CE approval MATRIX-9000 |
| Indicator temperature range | -10 to +50° C |
| Indicator Interfaces | 2 nos. RS232, 1 nos. RS485, USB direct interface |
| Power Supply | 220/240V AC, -10% to +15% |
| Calibration | Front panel calibration |
| Software | Matrix 9000 standard software with MS-SQL Server/MS-Access database support. |
Visco India Competitive Technological Advantage:
- First Indian Company to obtain the model approval weighbridges up to 200 MT from the Department of Legal Metrology, Govt of India
- First Indian Company having crossed and Installation base of 6000+ WEIGHBRIDGE Largest Infra Clientele
- First Indian company to supply the longest Weighbridge 24 X 3M 200 MT
- Structural Design in accordance to STRAAD PRO III AND IRC 3
- Structural specification in accordance to BIS 2062 / 2082
- FLINTEC AG LOADCELLS RC3 surpasses worldwide approvals and specifications including CE, EX, OIML, NTEP, PTB, FM SELF ALIGNING PRICIPLE
- Lowest Cost of Ownership ROI
- Dedicated Customer line support
- Impact protection System / Kinetic
- Remarkable strength: weight Ratio
- Best design aesthetics in the Industry
- Complete Non-Shrinking Grouting parts
- Customised off Road Weighing systems
- Modular Design can be retrofitted, upgraded and fully expandable
- Customised Software Matrix for Integration with Client Inventory Systems
- Specialised Foundations without RCC walls saving 50% Foundation costs for the customer
